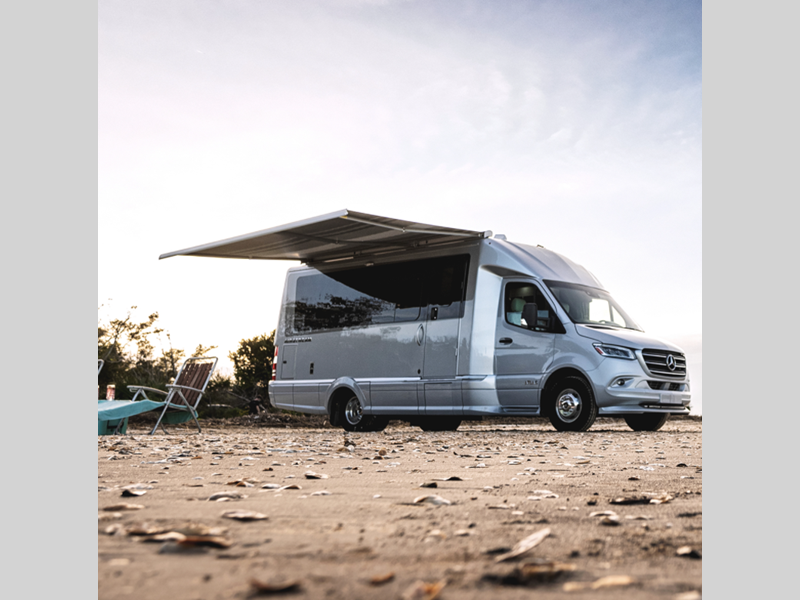

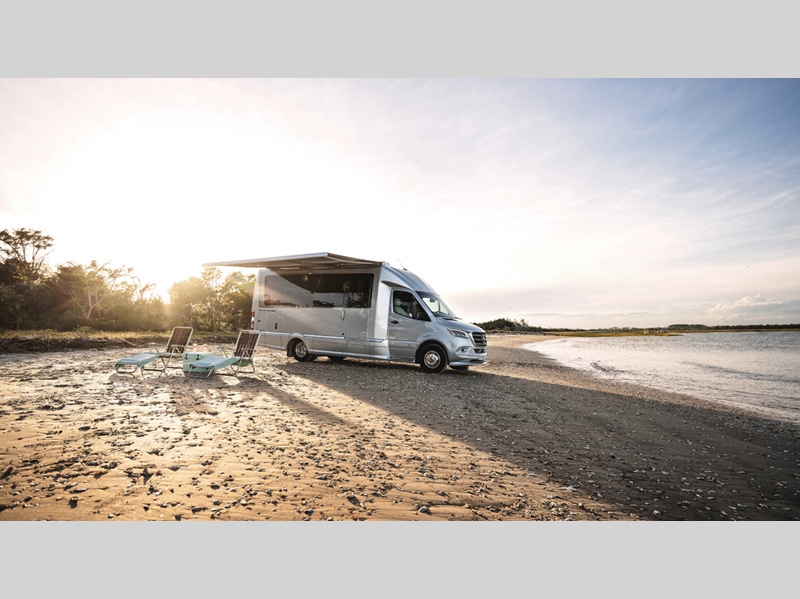

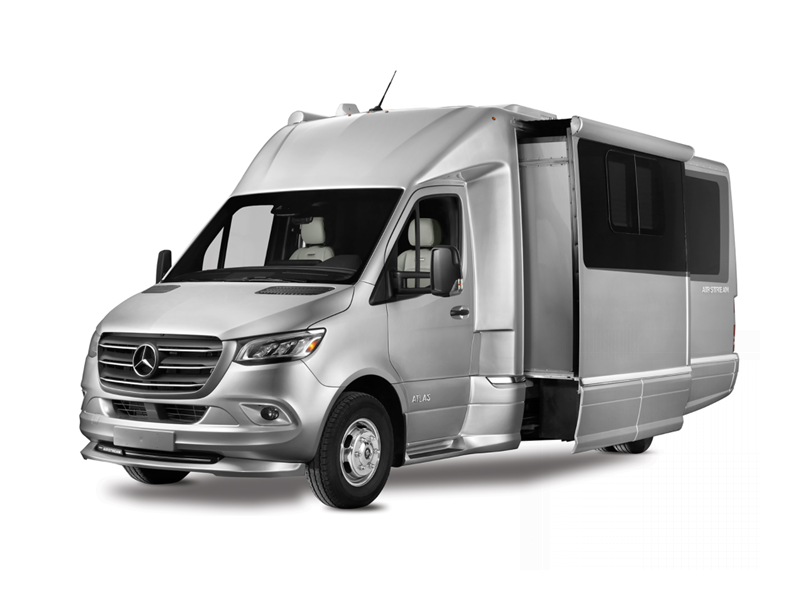

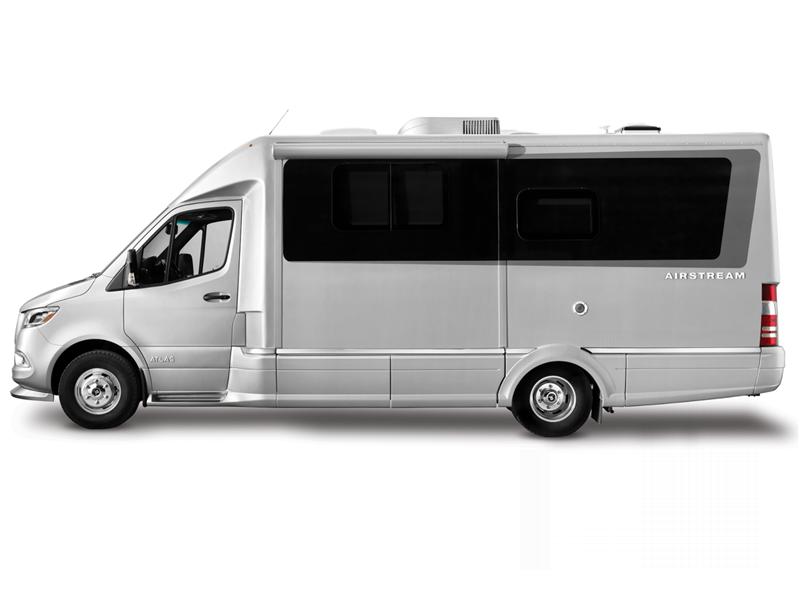

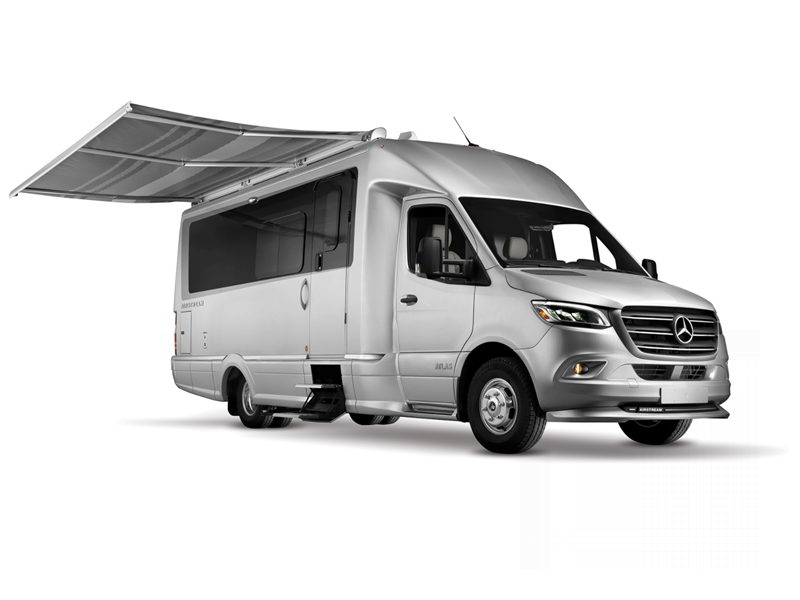

The Atlas Class B+ diesel motorhome by Airstream includes luxurious and thoughtful features plus is elegant and expansive with the power slide out and stunning styling.

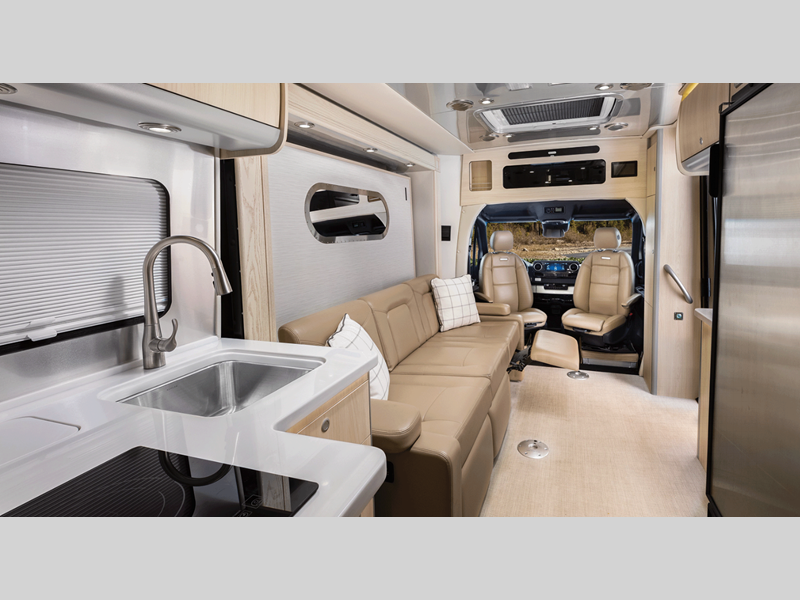

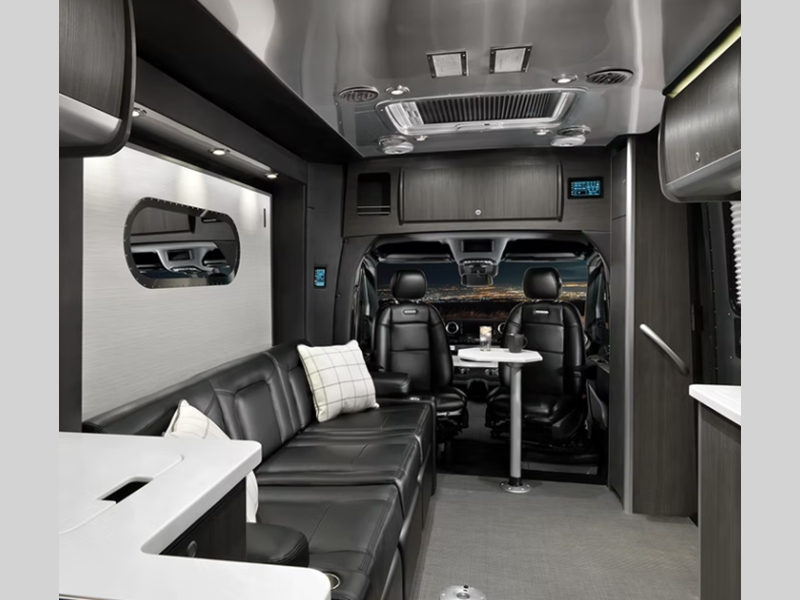

The coach is built on a Mercedes-Benz Sprinter van chassis, and includes active safety systems that automatically provide additional safety on the road such as active brake assist, driver attention assist, and active distance assist, distronic plus. The interior offers a cockpit with advanced in-dash technology and heated, swivel driver/passenger seats, plus the lavatory provides a stand-alone, corner shower with teak wall inlay, a Kohler faucet, shower head and sink, and a riveted aluminum porthole door.



When you are ready to travel like no other, relax in style, and roll with the best, choose an Airstream Atlas Class B+ diesel motorhome!

  • Atlas Murphy Suite

    Atlas Murphy Suite Floorplan Image

    Airstream Atlas Murphy Suite Class B+ diesel motorhome highlights: Murphy Bed ... more about Atlas Murphy Suite

    Specifications

    Sleeps 2
    Slides 1
    Length 24 ft 9 in
    Ext Width 7 ft 11 in
    Ext Height 10 ft 6 in
    Int Height 6 ft 6 in
    Interior Color Modern Greige, Classic Canyon, Formal Black, Tommy Bahama Special Edition
    Exterior Color Iridium Silver Metallic
    Hitch Weight 4000 lbs
    GVWR 12125 lbs
    Dry Weight 10129 lbs
    Cargo Capacity 1996 lbs
    Fresh Water Capacity 20 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 27 gals
    Furnace BTU 19000 btu
    Generator 3.6 kW LP with Remote Start
    Fuel Type Diesel
    Engine Mercedes-Benz 2.0L 4-Cylinder High Output
    Chassis Mercedes-Benz Sprinter 4500
    Horsepower 211 hp
    Fuel Capacity 24.5 gals
    Wheelbase 170 in
    Available Beds Murphy
    Torque 332 ft-lb
    Refrigerator Type 12 Volt
    Refrigerator Size 9.1 cu ft
    Convection Cooking Yes
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 9.76 gals
    Water Heater Type On Demand Continuous Flow
    AC BTU 15000 btu
    TV Info LR 40" LED Widescreen HDTV
    Awning Info Power Armless w/Auto-Retract w/LED Lighting
    Gross Combined Weight 15250 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

Atlas Features:

Standard Features (2025)



Specifications

  • Mercedes-Benz® Sprinter 4500 Chassis
  • Engine: Mercedes-Benz® 2.0L 4-Cylinder High Output Diesel
  • BlueTEC SCR Technology, 50 State – EPA/CARB Standards
  • 211 HP / 332 lbs. torque
  • 9 Speed Automatic Transmission
  • Axle Ratio: 4.727
  • Wheelbase: 170"
  • MPG: 16-18+ Estimated Highway
  • Mercedes-Benz® Adaptive ESP® (Electronic Stability Program)
  • Tow Package Mercedes-Benz® Hitch, 7 Pin Trailer Plug, Brake Control Pre-wired
  • Tow Capacity Up to 4,000 lbs.
  • Mercedes-Benz® Trailer Stability Assist System
  • Air Conditioner: 15,000 BTU Quietstream™ Ducted with Heat Pump
  • Furnace: 19,000 BTU
  • Water Heater: 60,000 BTU On-Demand Continuous Flow
  • Heated Tanks: Fresh, Gray & Waste Tanks (12 volt)
  • Refrigerator & Freezer: 9.1 cu. ft. (12 volt)
  • Cooktop: 2 Burner with Integrated Cover
  • Safety Components: LP Gas Detector, Smoke and CO2 Alarm, Fire Extinguisher, First Aid Kit
  • Plumbing System: Macerator Pump System w/Electric Retract
  • TV Antenna: Directional In-motion VHF/UHF
  • TV Cable: Cable TV Outlets/Hook-ups
  • TV Satellite: Pre-wired for Satellite Dish
  • Electrical System: Touch Screen/Touch Pad Electronic Controls with Energy Management System
  • Converter/Inverter: 50 amp Multi-stage Charger, 1,000 Watt Pure Sine Inverter

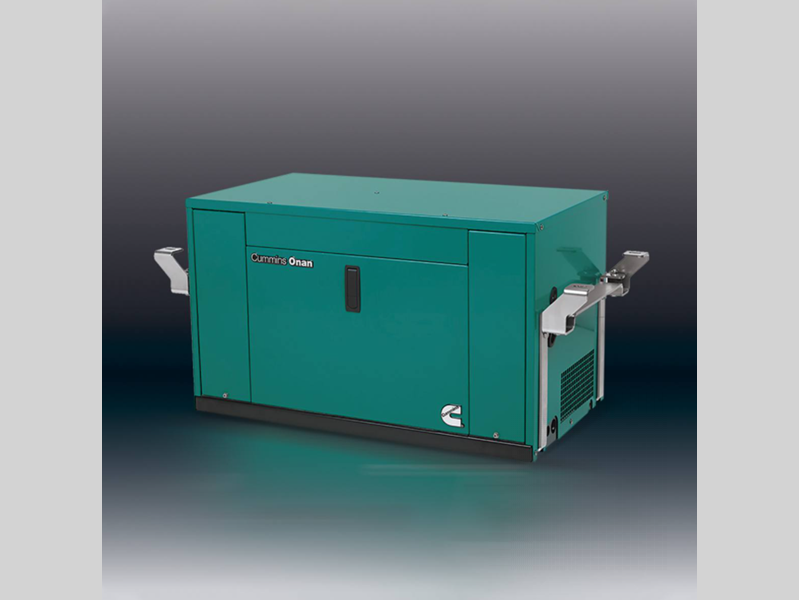

  • Generator: 3.6 kW (LP) with Remote Start
  • Batteries (Coach): 2 – 100 Ah Deep Cycle Lithium Battle Born Batteries (LiFePO4)
  • Shore Power: 30 amp / 110 Volt Service
  • Solar Power: 400 Watt Solar System
  • Steering Wheel Paddle Shifters: Paddle Shifters

Safety

  • Active Brake Assist
  • Active Distance Assist - Distronic Plus
  • Active Driver Attention Assist
  • Active Lane Keeping Assist
  • Crosswind Assist
  • E-Call Assist
  • Fire Extinguisher
  • Four Seat-Belt Positions
  • Front and Rear Parktronic Parking Assist
  • High Beam Assist
  • High Mounted Third Brake Light
  • Multiple Safety Impact Air Bags
  • Rear Camera Assist with Always-On Viewing & Adjustable Angle
  • Side Camera Assist Integrated in Side Mirrors
  • Smoke, CO2 & LPG Detectors
  • Traffic Sign Assist
  • Wet Wiper System

Exterior

  • 110V Outlet, HDMI & Coaxial Output
  • Air Ride Suspension
  • BASF Metallic OE Paint with Cut & Buff Finish
  • Chrome Package (body line trim, grill, license plate holder)
  • E1 Package (Optional)
  • Exterior Shower with Hot & Cold Water

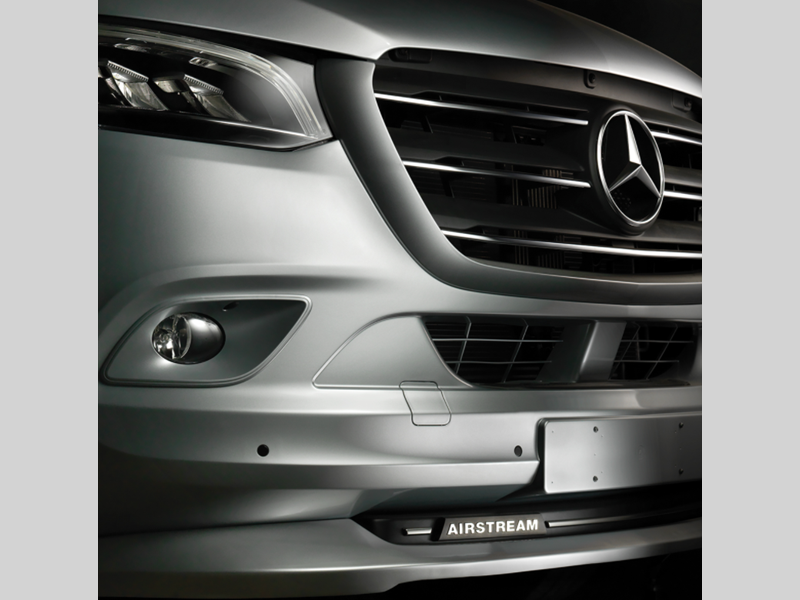

  • Fog Lamps
  • Frameless Radius-Corner Tilt-Open Windows
  • Front Lower Spoiler
  • Hidden Hitch Cover Rear Bumper
  • Hidden Retracting Screen Door
  • Hydraulic Leveling Jacks
  • LED Patio & Awning Lighting
  • LED Undercarriage Lights with Dimmer
  • LP Accessory Hook-up (Grill)
  • Mercedes-Benz® OE Sprinter Tail Lights
  • Power Armless Awning with Auto-Retract

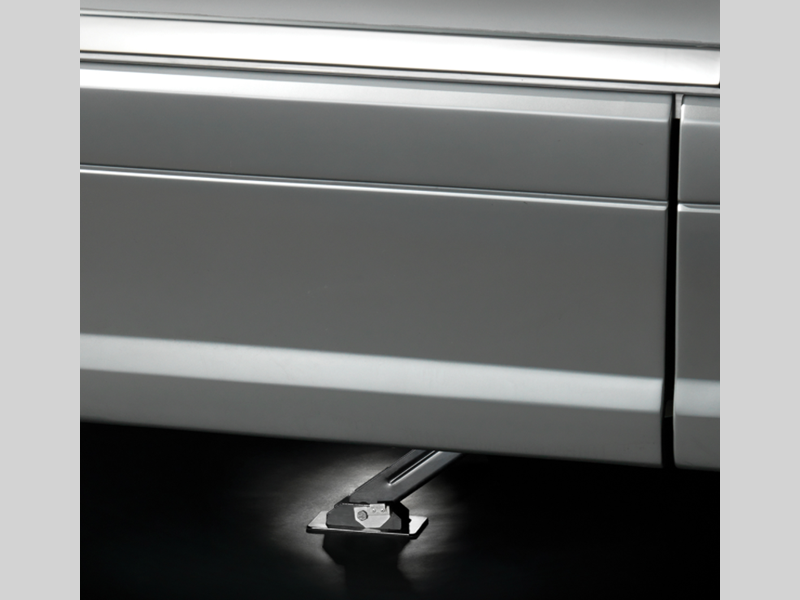

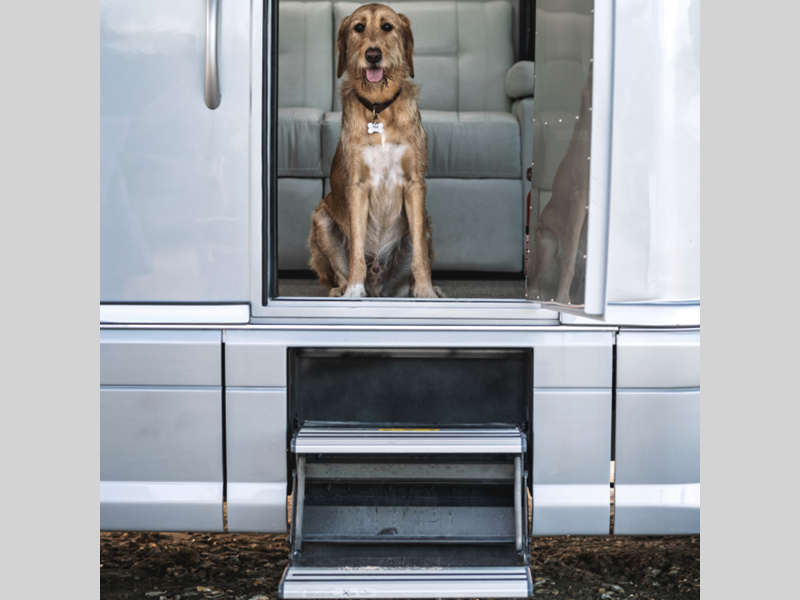

  • Power Entry Step with Hidden Design
  • Remote Locking Storage Doors with Hidden Latches
  • Starlink Flat High Performance In-Motion (internet/service plan required)

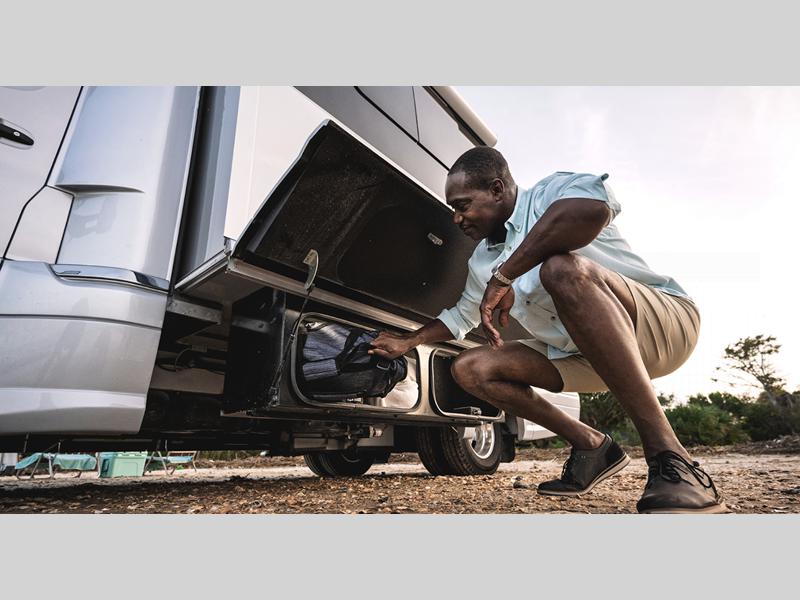

  • Storage Compartments with LED Motion Lights
  • Triple  Nickel Chrome Finished Wheels

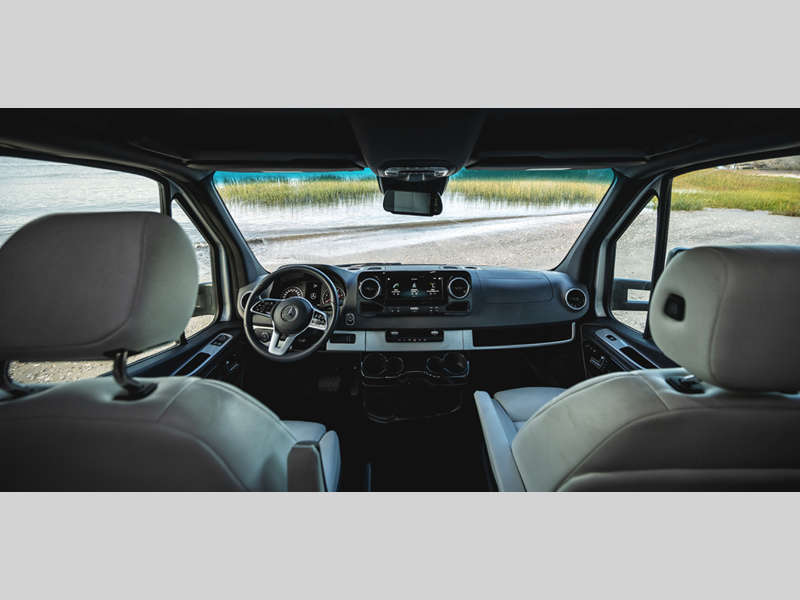

Cockpit

  • Advanced Multifunctional Steering Wheel
  • Custom Carpet Floor Mat
  • Entry Door Lighting
  • Front Bed System (Optional)
  • Heated Swivel Driver/Passenger Seats
  • In-Dash Maintenance Monitoring System
  • In-Dash Wireless Cell Phone Charging

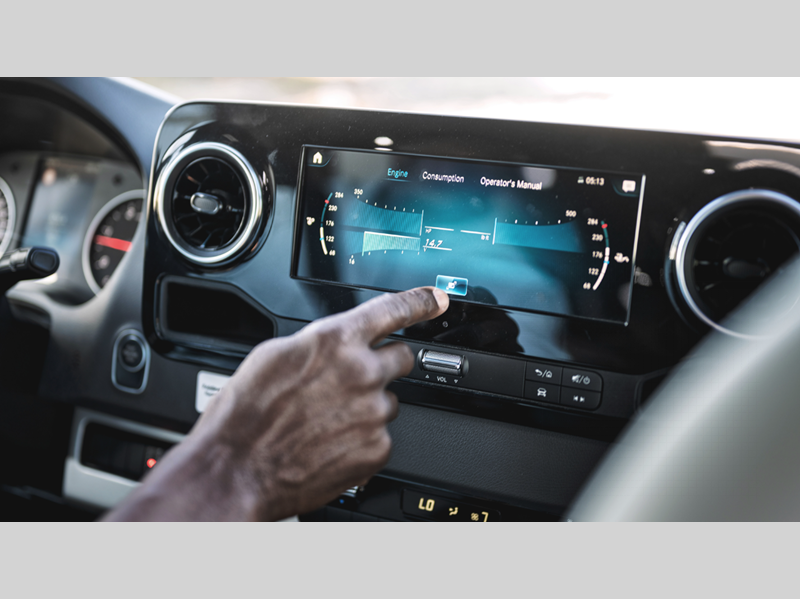

  • MBUX Infotainment System (Mercedes-Benz User Experience) Touch Screen, Pinch, Zoom, Voice Recognition, Apple Carplay, Android Capability
  • Multifunctional Steering Wheel
  • Overhead Map Lights
  • Privacy Shades
  • Rear & Side View Camera Monitor
  • Tilt & Telescopic Steering Wheel

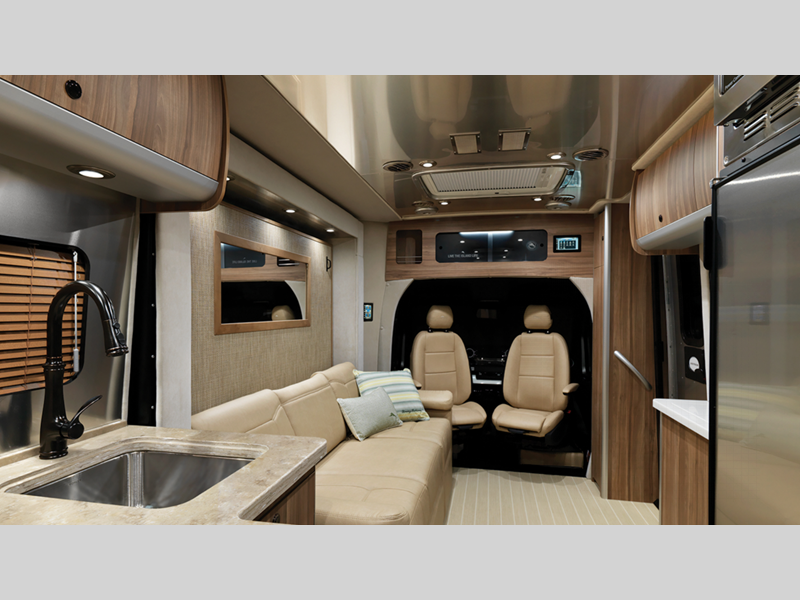

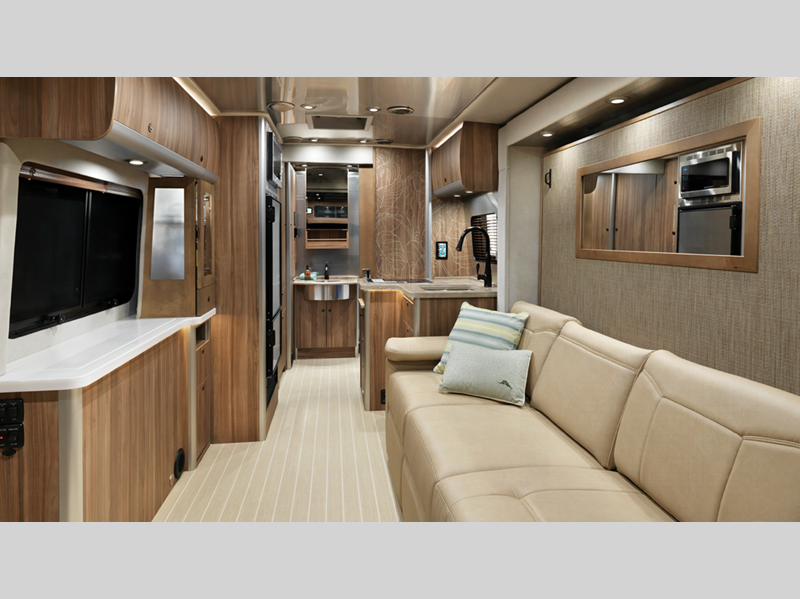

Main Cabin

  • Adjustable LED Lighting
  • Flush-Mount Cabinet Hardware & Soft Close Doors
  • Froli® Ergonomic Bed Support System

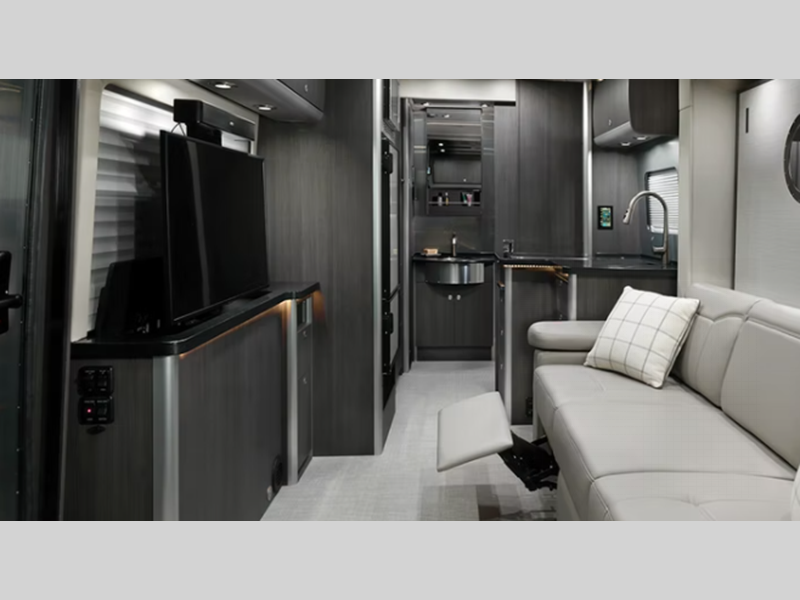

  • LED 40" Widescreen HDTV & Soundbar on Power Lift
  • Marine Woven Synthetic Flooring
  • Matte Finish Laminate Cabinetry
  • Multiplex Control System with 7" Color Touchscreen
  • Pedestal Table (2)
  • Power Opening Sunroof Skylight with Screen & Shade

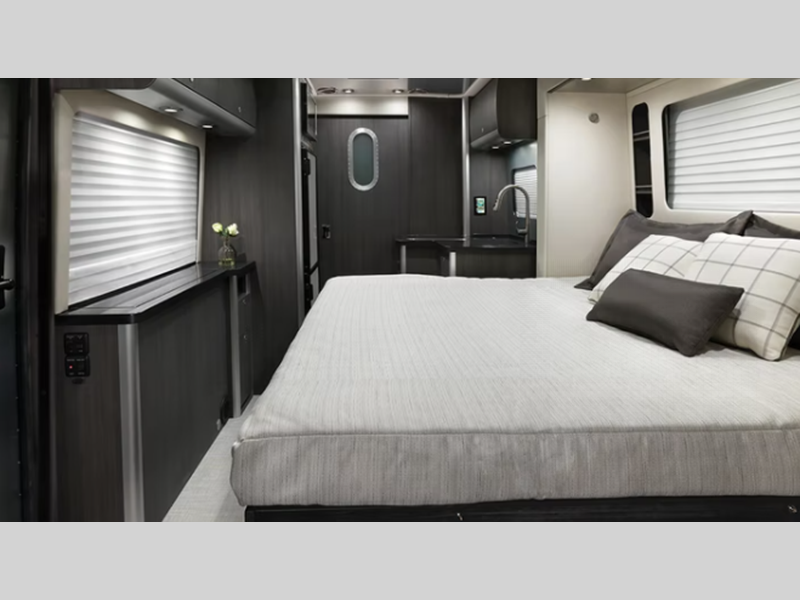

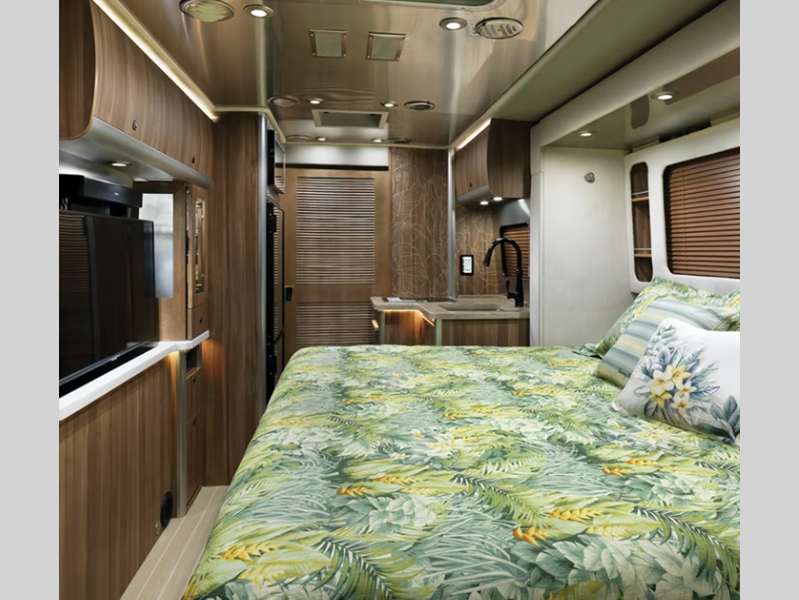

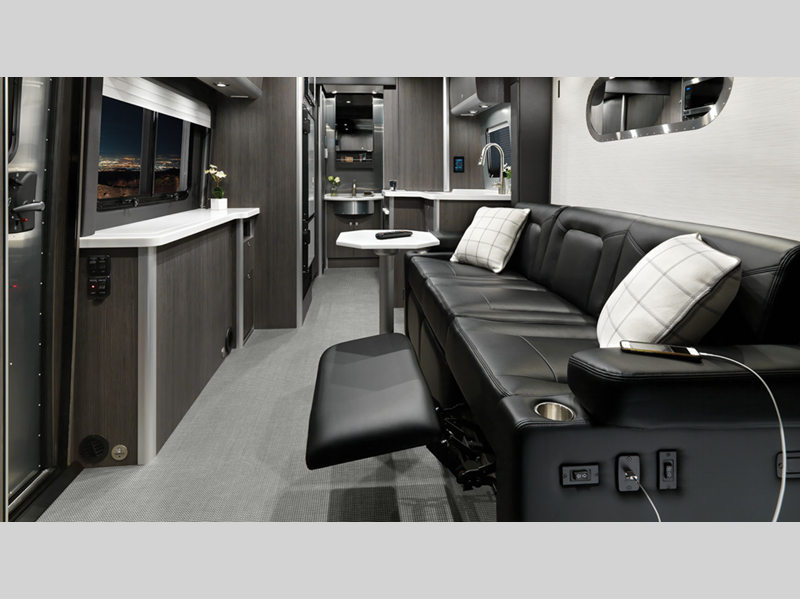

  • Power Sofa with Integrated Murphy Bed
  • Power Tilting Oceanair Window Shades
  • Signature Aluminum Ceiling & Trim
  • Ultraleather® Seating
  • USB Charging Ports
  • Vinyl with Urethane Covering on Walls and Windows
  • Wardrobe Closet

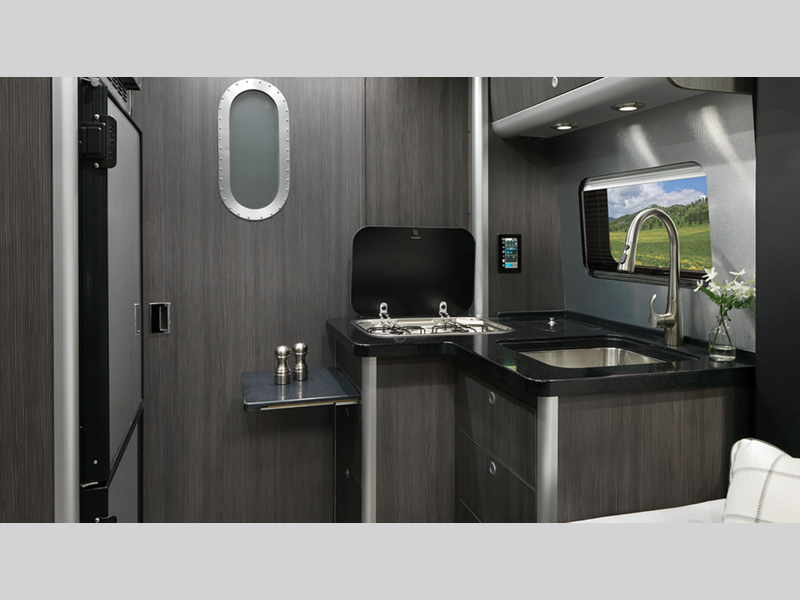

Galley

  • 1.1 Cubic Foot Convection Microwave
  • Aluminum Refrigerator Fascia
  • Drop-In Waste Basket with Solid-Surface Cover
  • Galley Extension Pull-Out Shelf
  • Kohler® Faucet & Sink with Flush Solid-Surface Cover
  • Multi-Speed Roof Exhaust Fan with Rain Sensor
  • Solid-Surface Countertop with Aluminum Backsplash

Bathroom

  • Cedar Lined Wardrobe Closet
  • Corner Shower with Teak Wall Inlay
  • Integrated LED Shower Lighting
  • Kohler® Faucet, Shower Head & Sink
  • Mirrored Medicine Cabinet
  • Multi-Speed Roof Exhaust Fan with Rain Sensor
  • Porcelain Toilet
  • Riveted Aluminum Porthole Door
  • Storage Drawers
  • Towel Rack

Construction

  • Azdel Composite Roof/Floor/Wall Material
  • Curved Composite Storage Doors with Continuous Hinge
  • Floor – Vacuum-Bonded Aluminum-Framed
  • Interlocking Extrusion Joints with Huck Rivets
  • Molded Fiberglass Front & Rear Caps
  • Roof – Fiberglass Crowned Vacuum-Bonded Aluminum-Framed
  • Trimless Smooth Fiberglass Body Seams
  • Walls – Radius Vacuum-Bonded Aluminum-Framed

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions.  See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Airstream RV Logo

In 1931, Airstream began with Wally Byam’s dream: to build a travel trailer that would move like a stream of air, be light enough to be towed by a car, and create first-class accommodations anywhere.



Wally Byam introduced the first riveted aluminum, semi-monocoque Airstream – known as the Clipper – in 1936. He forever changed the world of travel and built a community of like-minded adventurers called Airstreamers. Today, the entire Airstream community keeps Wally’s spirit alive and well.



Airstream travel trailers and touring coaches aren’t built the fastest way. Not the easiest, either. That’s because they’re built with an obsessive attention to detail, and a willingness to choose the processes and materials that make the absolute best product – even if it’s a little harder, takes a little longer, and costs a little more to do. That’s the kind of quality that makes Airstreams last not just years but generations, and the kind we’re proud to put our name on.
